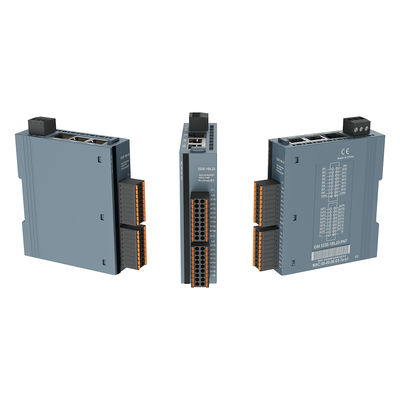

OM52*E Profinet-RT Bus Coupler PLC IO Module 16DI+16DO PNP

Ordering data

Model

OM52xE Distributed scalable coupler

Technical Specifications

Operating voltage

24VDC (allowable voltage range 18VDC~28VDC)

Working Current Consumption

For details, please refer to the product manual for different product models.

Power Protection

Anti-reverse connection protection, surge absorption

Bus Communication Interface

2*RJ45

Extension module interface

1*RJ45

Power terminal type

Plug-in connector, screw terminal

Signal terminal type

Plug-in connectors, straight-through push-in terminals, or MIL horn sockets

Indicator

Power indicator, NET green indicator, SF red indicator , IO signal green indicator

Support Protocol

Prof inet-RT

Master-Slave Category

Independent slave device

Ontology IO point

Yes, see ordering data for details

Overcurrent protection threshold

1.5A,5ms

IO response time

Minimum 1ms

Scalability

16 EM500E-EM modules

Extended connection distance

Total length: 150 meters, maximum length between modules: 20 meters

Cable length (shielded)

Up to 500m

Cable length (unshielded)

The maximum input distance is 300m, and the maximum output distance is 150m

Slave Settings

Device name and IP settings

Master station automatic allocation or manual allocation

Maximum number of stations per section

255 (the specific number of supported stations is determined by the master station)

Work Environment

Working temperature

-20~60℃

Ordering data

Model

OM52xEDistributed scalable coupler

Work Environment

Working environment humidity

5%~90% (no condensation)

Altitude

Below 2000 meters (80kPa)

Protection level

IP20

Dimensions (length * width * height)

27*104*114cm

Specification

Order Number

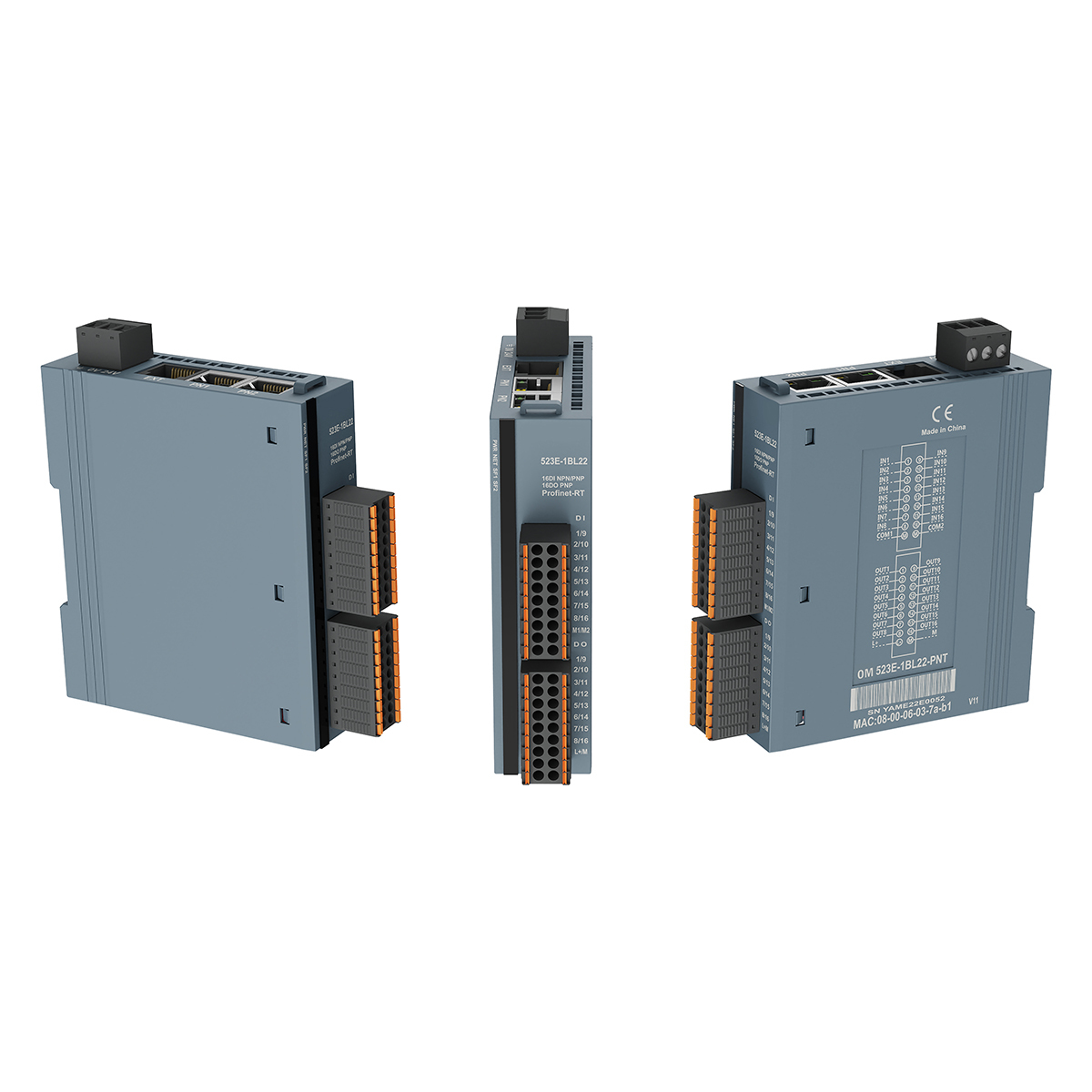

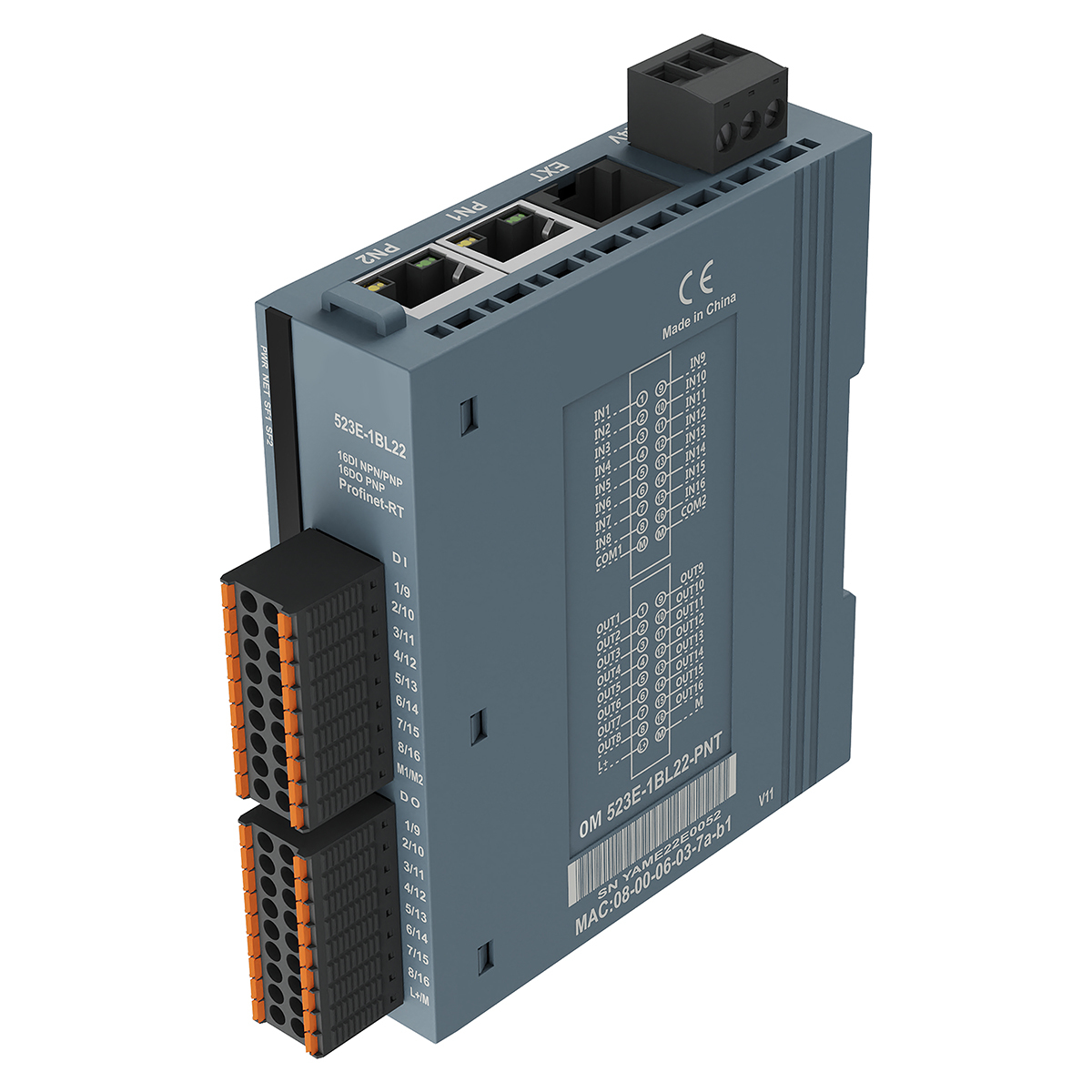

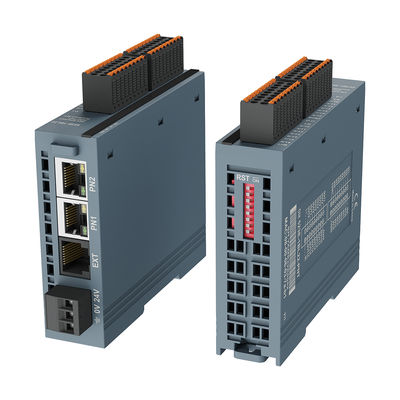

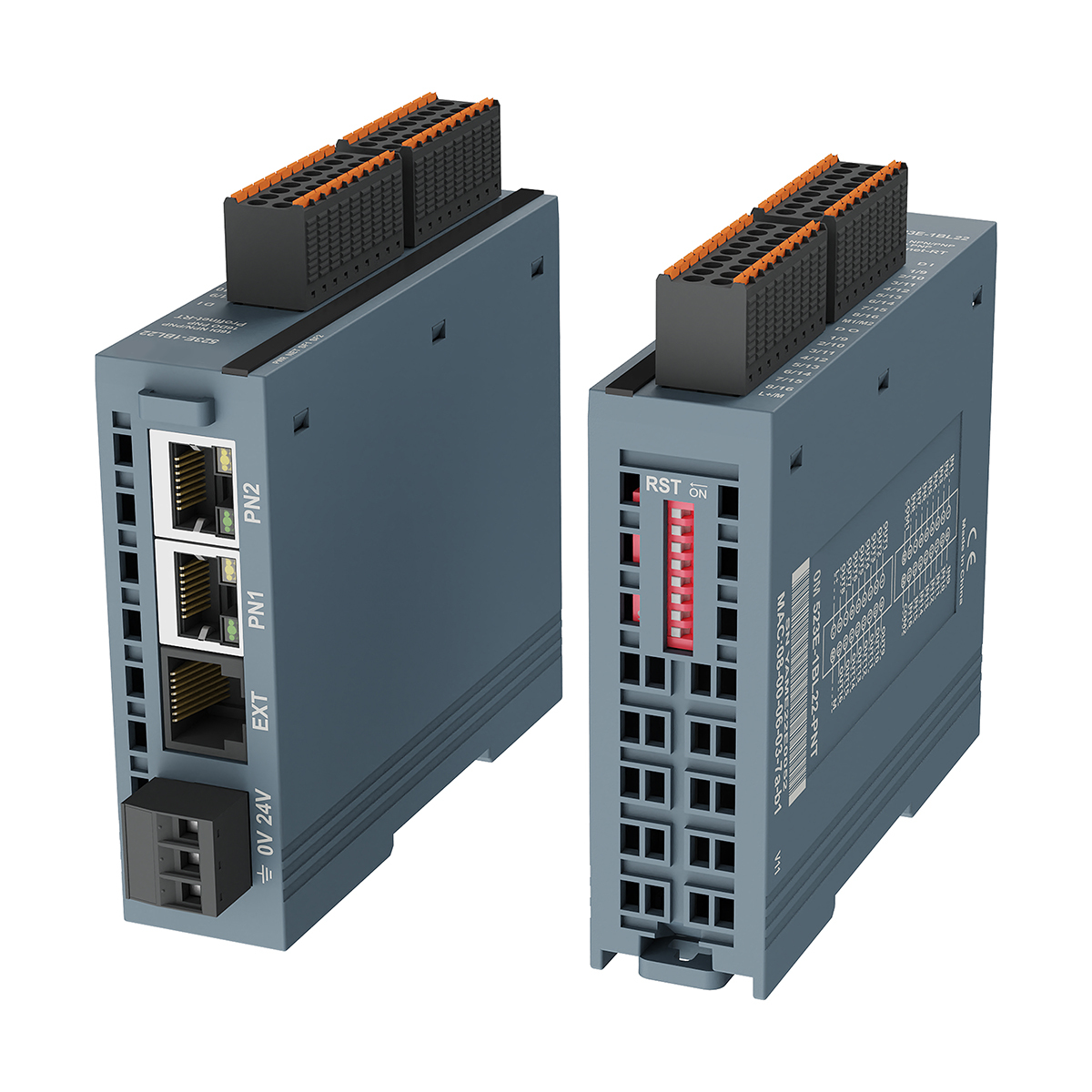

OM523E vertical internal bus distributed scalable coupler, Profinet-RT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with reset dial switch, the main body has 16DI (common cathode/common anode input), 16DO (PNP output), IP20 protection level,   DN35 rail installation

OM 523E-1BL22-PNT

OM523E vertical internal bus distributed scalable coupler, Profinet-RT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with reset factory parameter DIP switch, the main body has 16DI (common cathode/common anode input), 16DO (NPN output), DN35 installation, MIL horn socket

OM 523E-1NL22-PNT-MIL

OM524E vertical internal bus distributed scalable coupler, Profinet-RT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with reset factory parameters DIP switch, the main body has 16DI (common cathode/common anode input), 16DIO (PNP input/PNP output configurable, 2-way group configuration), IP20 protection level, DN35 rail installation

OM 524E-2BL22-PNT
