Ana sayfa /Ürünler/Video Dijital Optik Dönüştürücü/4 Port Contact Closure Fiber Optic Transceiver Bidi Transport for Industrial Monitoring CE

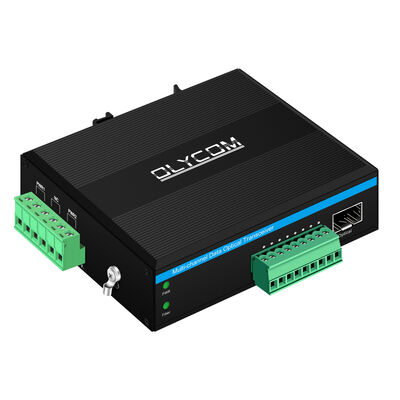

4 Port Contact Closure Fiber Optic Transceiver Bidi Transport for Industrial Monitoring CE

1 çift
MOQ
pazarlık edilebilir
fiyat
4 Port Contact Closure Fiber Optic Transceiver Bidi Transport for Industrial Monitoring CE
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Ürün adı: Endüstriyel Kontak Kapatma Medya Dönüştürücü
Dalgaboyu: 1310nm/1550nm
Çalışma Gerilimi: DC 12-52V
Sinyal Girişi: Alarm, İkili giriş, TTL, RS-232/422/485 veya pasif anahtar düğmesini destekler
Sinyal çıkışı: Keyfi alarm, İkili çıkış, TTL, RS-232/422/485 veya röle çıkışını destekler
Arayüz: Phoenix Terminal
Temel bilgiler
Menşe yeri: Shenzhen, Çin
Marka adı: Olycom
Sertifika: CE ISO9001 RoHS FCC
Model numarası: IM610-4K↑↓WT/R
belge: video converter series.pdf
Ödeme & teslimat koşulları
Ambalaj bilgileri: Kolide 1 adet, 0.45kg brüt ağırlık
Teslim süresi: 4 ~ 8 iş günü
Ödeme koşulları: Banka havalesi, Paypal
Yetenek temini: 5000 çift/ay
Ürün Açıklaması

DIN Rail 4 Port Contact Closure Optical Transceiver



Introduction

The IM610-4K↑↓WT/R industrial contact closure fiber converter is a compact DIN-rail mounted optical transmission device designed to convert and transmit 4 groups of dry contact alarm signals over long-distance fiber cables.
Adopting WDM single-fiber bidirectional transmission technology, it eliminates electromagnetic interference, ground loop noise and signal attenuation issues common in copper wiring.
Compatible with single-mode and multimode fiber, it supports diverse transmission distances from 2km up to 80km, and adopts flexible SFP slot design to match various optical modules.
With wide-range DC power supply and rugged industrial temperature adaptability, it reliably delivers passive switch, binary alarm and serial control signals for harsh on-site monitoring scenarios.

Specification


Optical

Wavelength

1310nm/1550nm

Output Power

-8~3dBm

Optic fiber

Single mode (9/125um) 20Km, multimode (50/125um) 5Km, ( 62.5/125um) 2Km

Receiving sensitivity

-30dBm

Interface

SFP slot

Contact Closure

Signal Input

Alarm, Binary input, support TTL, RS-232/422/485 or passive switch button

Signal Output

Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output

Interface

Phoenix terminal

Electrical. Environmental. Mechanical

Operating voltage

DC 12-52V

Operating temperature

-40℃～+75℃

Storage temperature

-45℃～+85℃

Humidity

0~95%non-condensing

Dimension-standalone

113.8mm ×93mm ×35mm

Weight

0.30kg/piece



Key Features



  • 4-channel bidirectional dry contact signal transmission over single fiber via WDM wavelength division multiplexing
  • Built-in lightning protection circuit, effectively resisting surge damage in outdoor and industrial field environments
  • Ultra-low optical link loss with maximum budget up to 30dB, stable long-distance signal delivery
  • Fully isolated fiber transmission, zero EMI, RFI interference and ground loop crosstalk
  • Detachable SFP optical slot, freely configurable with single/multimode modules and different fiber connectors
  • Phoenix terminal wiring, compatible with passive buttons, alarm inputs, relay outputs and TTL/RS232/422/485 serial signals
  • Wide DC 12–52V power input, suitable for industrial power supply standards
  • Extreme wide operating temperature range (-40℃ to +75℃) for outdoor, chemical and railway harsh sites
  • Standard DIN-rail installation structure, lightweight standalone design for easy cabinet deployment
  • RoHS compliant low-power industrial hardware with stable long-term continuous operation



Application



  • Urban smart security & safe city video alarm monitoring systems
  • Highway toll stations, road traffic signal and safety protection projects
  • Airport, chemical plant, railway and factory industrial equipment monitoring
  • Power grid, oil & gas field remote signal collection and alarm transmission
  • Campus, commercial building and large venue integrated monitoring platforms
  • National defense, frontier border monitoring signal transmission
  • TV stations, stadium live event audio-video auxiliary alarm signal delivery



Mechanical Drawing



4 Port Contact Closure Fiber Optic Transceiver Bidi Transport for Industrial Monitoring CE 0



Ordering Options



IM610-4K↑↓WT/R-FC20

4ch contact closure Bidi, SFP slot, din-rail mounted

IM610-4K↑↓MT/R-FC5

4ch contact closure Bidi , SFP slot, din-rail mounted



Item Number Code

OM600

OM600-Video Optical Transmitter / Receiver, 610-desk-top standalone, 620-card style

613-mini series, 615-HD series

V

Video

A

Audio

D

Data

K

Alarm (I/O, contact closure)

P

Telephone

E

Ethernet

M,W

M-Multi-mode, W-Single mode

S,U

S-1310nm, U-1550nm

T,R

T -Transmitter, R-Receiver

FC,ST,SC,LC

Fiber connector type

↑,↓, ↑↓

↑- forward (from TX to RX), ↓ - reverse (from RX to TX), ↑↓- bidirectional

1,2,3,…

Digits ahead of signal-quantity of required channel

05, 20, 40…

Digits next to fiber connector-working distance
